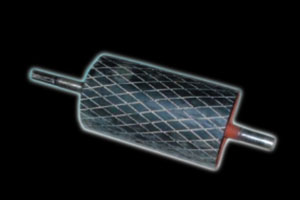

Drive and driven Pulley |

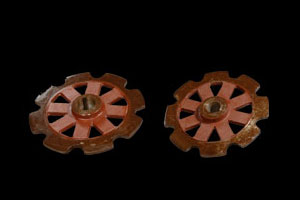

Sprocket |
| |
 |
| Rubber lagged pulleys are used to ensure positive power transmission to the belt. |
Sprockets made of hardened cast steel, CNC machined profile for smooth and longer life. |

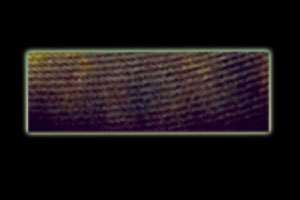

Belt |

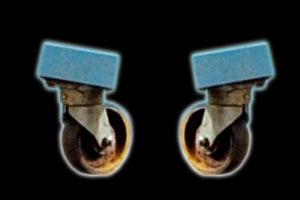

Swivel wheels |
|
|
| The Belt used is rough top canvas bottom for grip and slide free conveying of bags/boxes. |
Sturdy,swivel wheels of 8" are used for easy Maneuverability. |

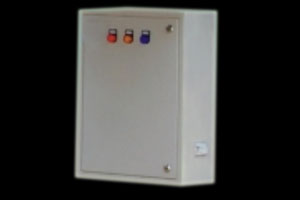

Control Panel |

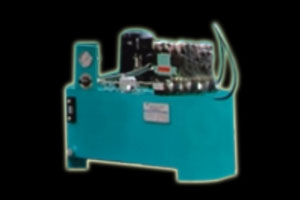

Hy. Power pack |
|
|
| The Operative Voltage of the system is designed at 24 Volts to ensure operators safety |
Hy. Power Pack is designed to lift the conveyor booms up and down, the cylinders are
operated with push button control switches, they are positioned at both end of booms. |
Bucket Elevator Buckets |

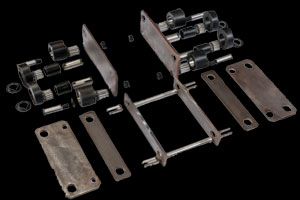

Chain Link Parts |
|
|
| Carrying Idlers With Stand |
Return Idlers With Stand |
 |
 |

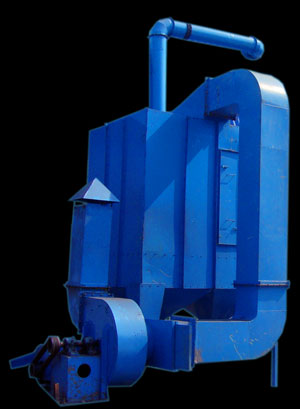

| Dust Collector |
|
 |
|
| |
|
